ZSS – Plunge Grinding

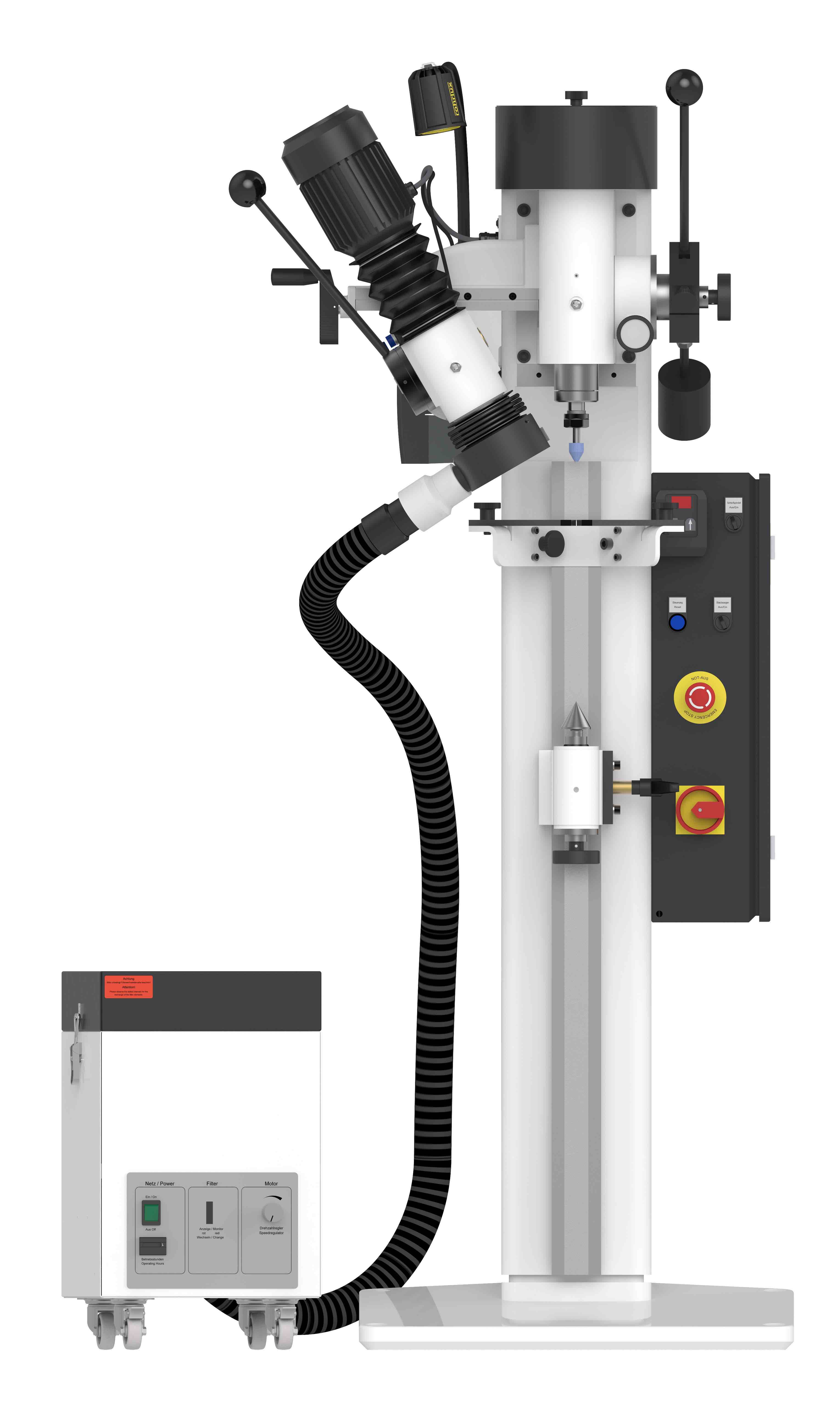

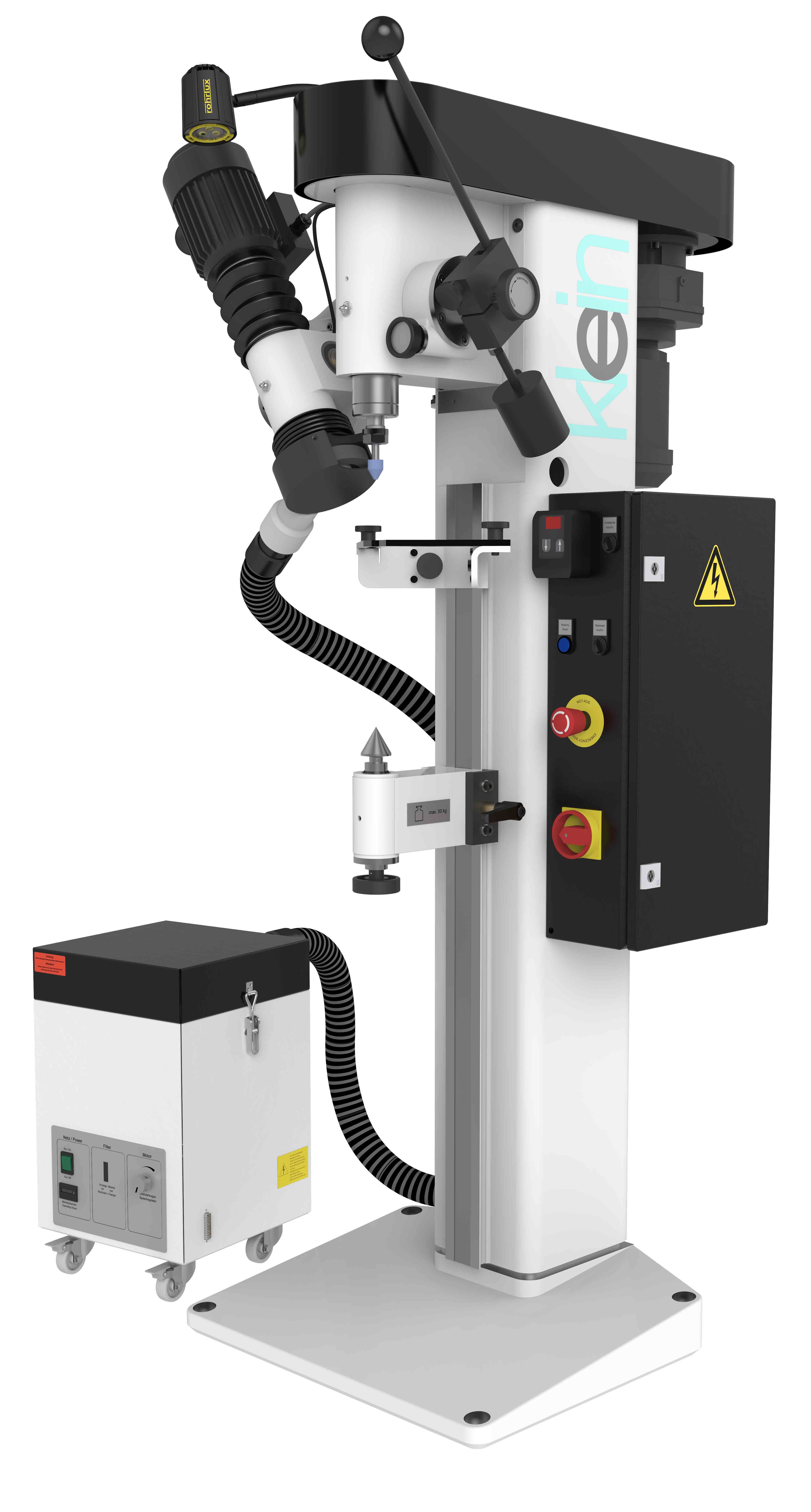

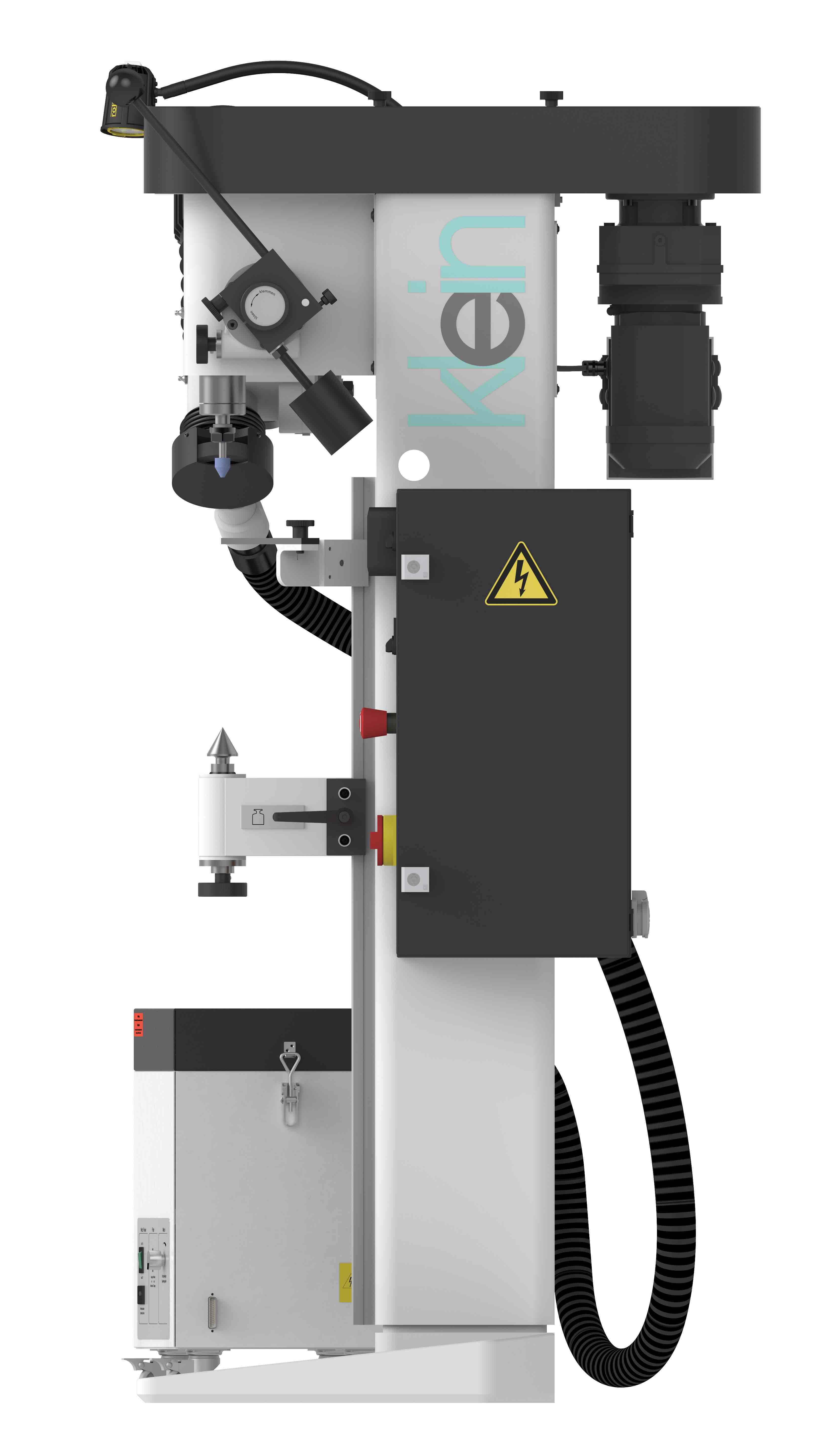

Centre Grinding Machine ZSS

Features

•  max. workpiece weight            50 kg
•  max. workpiece length            1500 mm
•  max. centre hole                       Ø 120 mm

•  Plunge grinding method, lapping method
•  Driven dressing wheel
•  Work-piece is held by hand
•  Two-handed operation possible



Working Range

For Workpieces which

•  must not be concentric to the outside diameter in the first place
•  must not loose his position
•  must have an excellent roundness (< 1 µm)
•  very small centre holes.



Working Result

•  Roundness as measured at the centre hole 1 µm



Product Brochure

•  More information you can find in our product brochure:

Do you have any questions?

•  We are more than happy to help you.

•  Or contact our local sales representative

Klein Maschinenbau GmbH u. Co. KG - Centre Grinding Machine ZSS

Gallery
