Centre Grinding Machine ZSU

Features

•  max. workpiece weight            160 kg
•  max. workpiece length            2000 mm
•  max. centre hole                         Ø 150 mm

•  Linear Grinding Method
•  Driven dressing wheel
•  Work-piece is clamped into a steady or in a rotating grinding chuck.



Working Range

For Workpieces which

•  have to be concentric to the outside diameter
•  have to be offset
•  have to have an excellent roundness (< 2 µm)
•  very small centre holes (min. Ø 1 mm)



Working Result

•  Roundness as measured at the centre hole 2 µm



Product Brochure

•  You can find more information in our product brochure:

Do you have any questions?

•  We are more than happy to help you.

•  Or contact our local sales representative

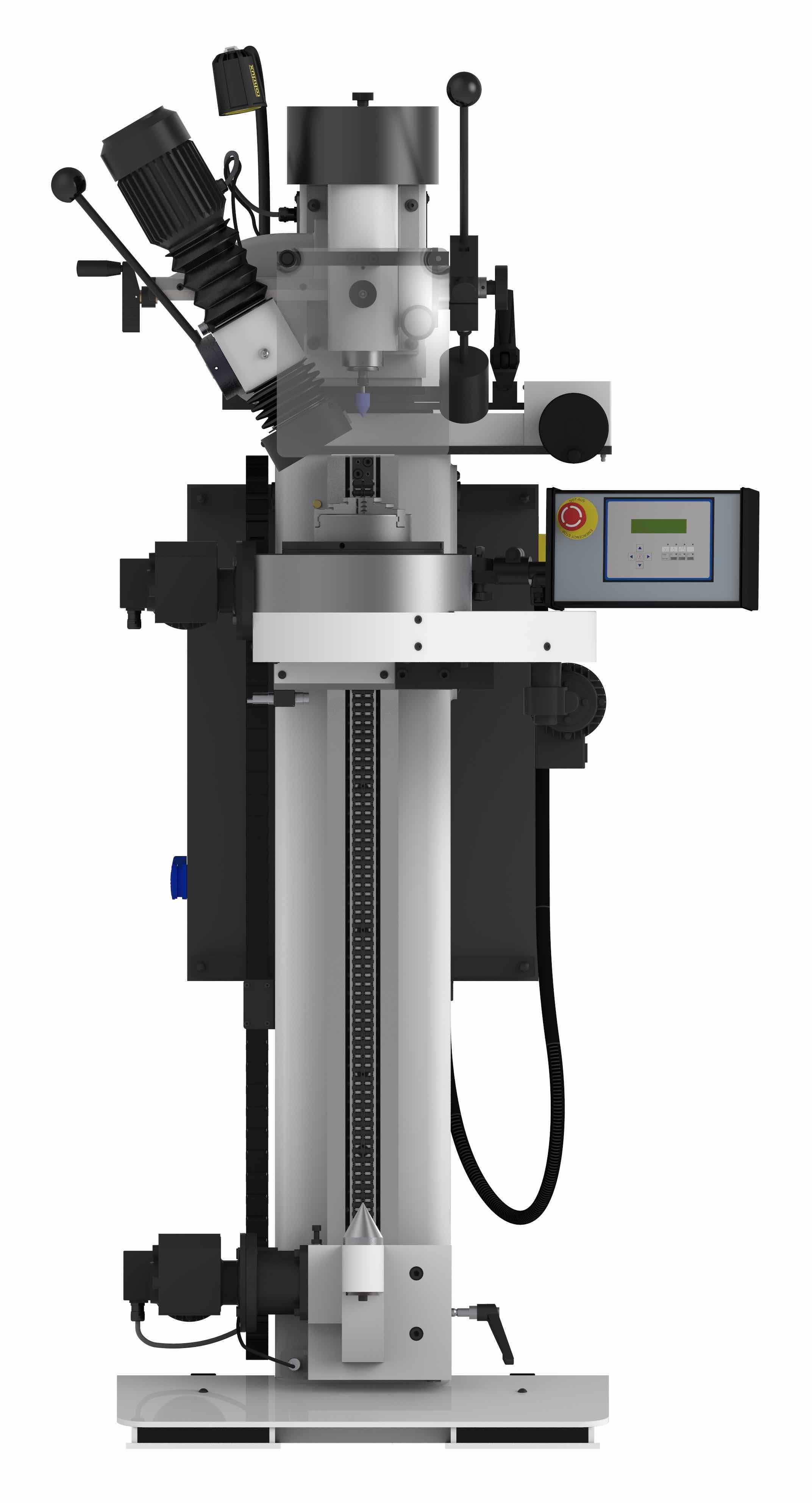

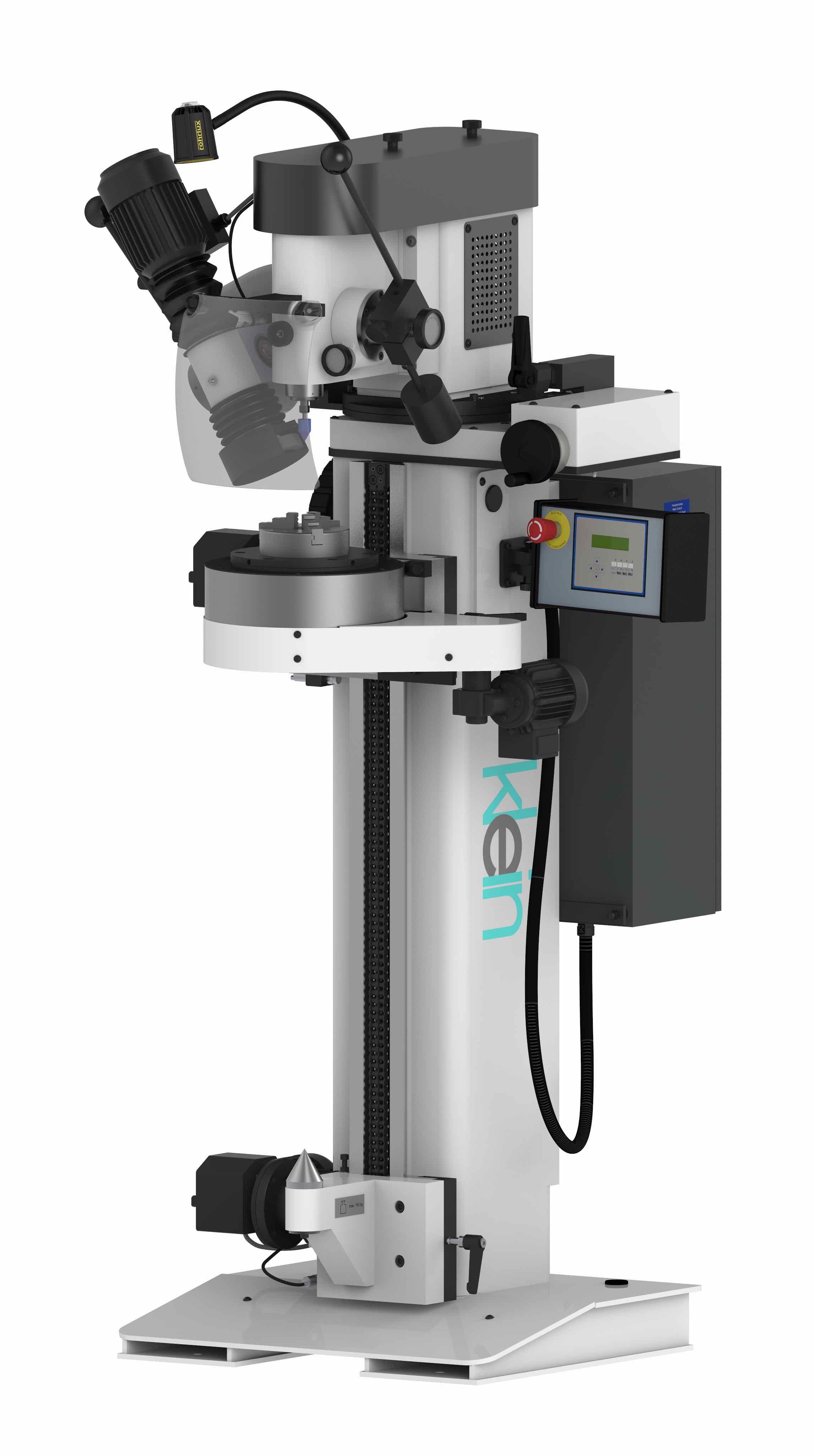

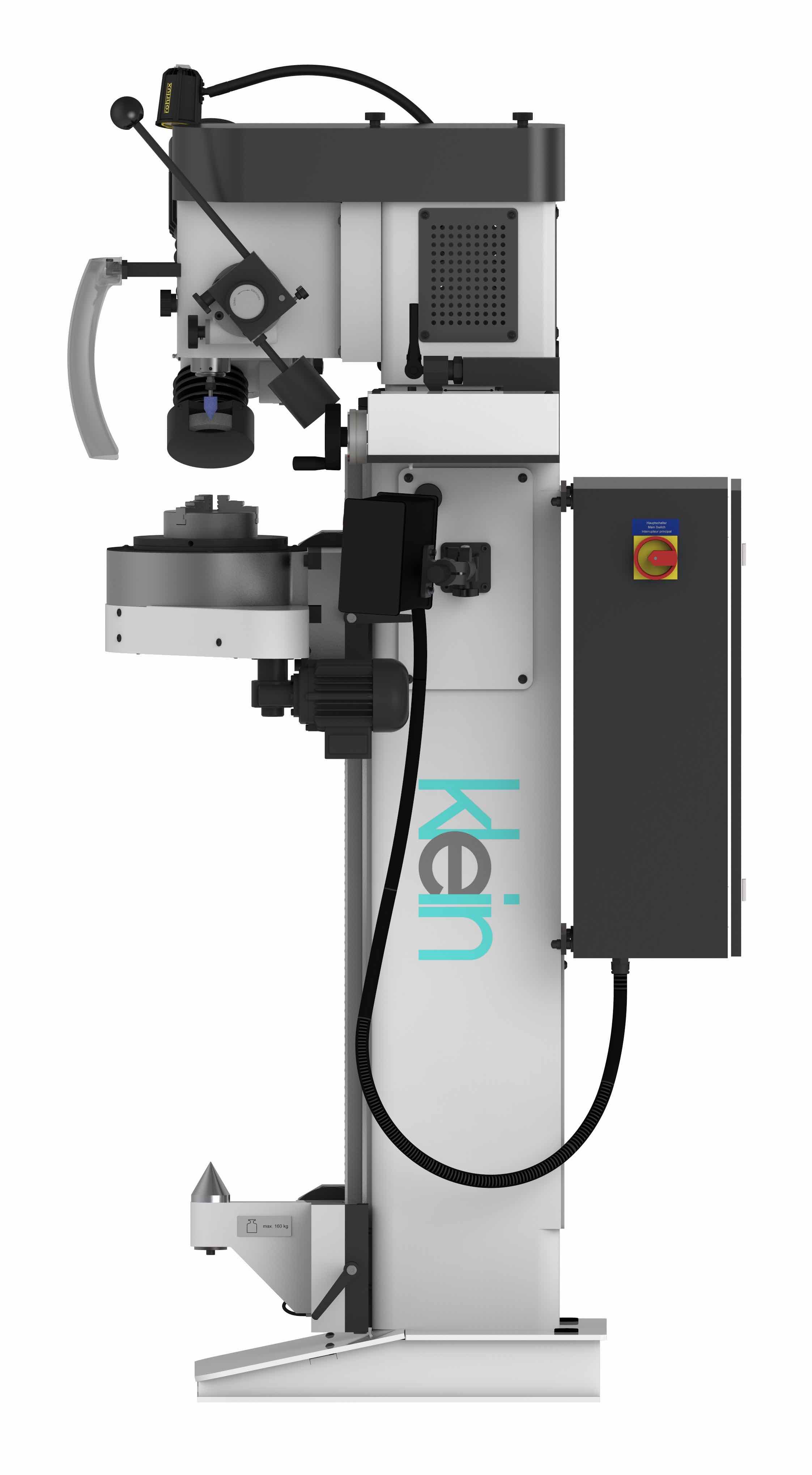

Gallery
